NLO Roaming License
NLO License borrowing with checkout/return/expiry parameters
Users can now check out an NLO license for 30 days, then disconnect from the network. This allows users to borrow licenses, disconnect, move their laptop, and keep using the GibbsCAM products even when the license server has stopped.

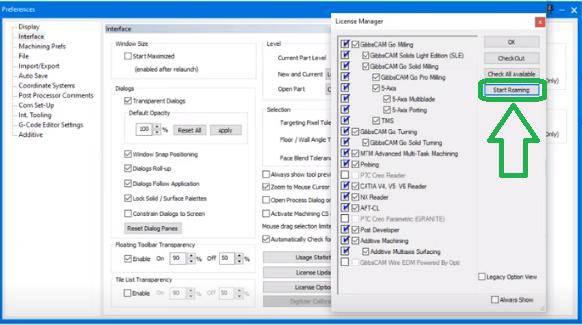

Where to find it: Under File > Preferences > Interface, click License Options; then, in the License Manager dialog, click Start Roaming.
Borrowed licenses can be returned manually. To do so, open the license dialog used to initiate the roaming, then select Stop Roaming to return the license to the server pool.

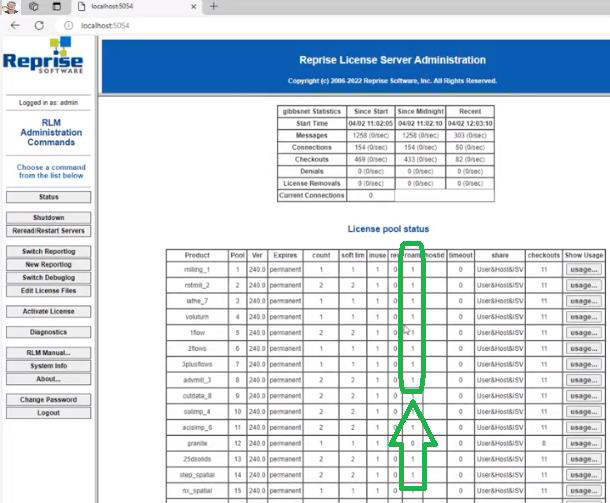

Reprise License Server Administration shows the count of roaming licenses in its License Pool Status:
Note:
When a GibbsCAM network roaming license becomes stuck in a roaming state and fails to check back in or release properly, the borrowed license seat remains unavailable on the network. This article outlines the step-by-step procedure to clear stuck roaming data on both the client workstation and the license server, restoring normal license checkout functionality.
Resolving a Stuck Roaming License in GibbsCAM (RLM)
